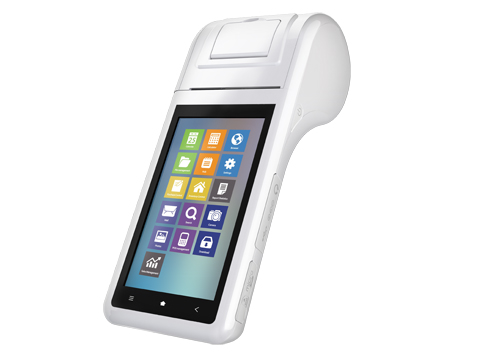

HGT-57
Main feature
Technical Parameters

Main Feature

1.Android System:carrying 32/64 bit high performance CPU and large capacity memory.

2.Support for multitask running at the same time:Support multi task operation,support for parallel implementation software,meet the application requirements of personalized business.

3.Flexible configuration:providing a variety of flexible communication mode selection,ensuring communication speed and security of transactions.

4.High security:providing multiple security protection,ensure the security of sensitive data.

5.High speed printing:set-in high-speed thermal printer,easy to load paper.


ItemsSpecifications
ModelHGT-57HGT-57 LTE
CPU4x Cortex-A7 1.3GHz 4x Cortex-A53 1.5GHz  / 8x Cortex-A53 1.7GHz
GPUARM Mali-400MP2 533MHzARM Mali-T720 MP2 450MHz~600MHz
Operating SystemAndroid4.4.2Android 6.0
Memorizer4GB ROM+512M RAM1GB/2GB/3GB ROM + 8GB/16GB/32GB eMMC
Communication

2G:GSM/GPRS (850/900/1800/1900)MHz

2G:GSM/GPRS (850/900/1800/1900)MHz

3G:WCDMA (850 or 900/1900/2100)MHz

3G:TDS(34/39),WCDMA(B1/B2/B5/B8),

CDMA2000(BC0)

/

4G:TDD(38/39/40/41)

FDD(1/2/3/4/5/7/8/17/20/12/13/28)

BT4.0LE+EDRBT4.0LE
WIFI IEEE802.11 b/g/nSupport hot spots(5G 802.11.AC)
GPS,support for A-GPSGPS,support for A-GPS/BDS(Option)
Screen480×854 Dot matrix,4.5' TFT  LCD+TP
Keyboard3 Function keys、1 power key
SIM Card Reader1 pc,according with ISO7816 standard
Contactless Card Reader1 pc,support for ISO14443 Type A/B,Mifare 1 card1 pc , support for ISO14443 Type A/B,Mifare DESFire card
Support ISO15693 RFID(option)
Printer58mm high speed thermal printer,the maximum diameter of paper roll is 40mm
Physical InterfaceTF card slot/Micro USB/External Power IN /SIM card slot/headset
Power AdapterDC 5V 4A
Battery3.7V 3000mAh lithium-ion battery
Outline Dimension200mm×80mm×70mm (L×W×H)
Weight380g(Include battery)
Environmental requirementsWorking temperature:-10℃~+45℃;Storage temperature:-40℃~+70℃;
Relative humidity:5℅~95℅ (No condensation)
Bar Code Reader1D/2D(option)
Camera5.0M  AF
Foundation CertificateCE,CCC

(The information shown here is indicative only,If there is inconsistency between the specification and the actual product,the actual product shall govern.)
